Fully Automatic Electric Control Valve Water Purifier Machine 500LPH RO System Water Treatment Equipment

Product Categories
Guangzhou Kai Yuan Water Treatment Equipment Co., Ltd.
Contact Now

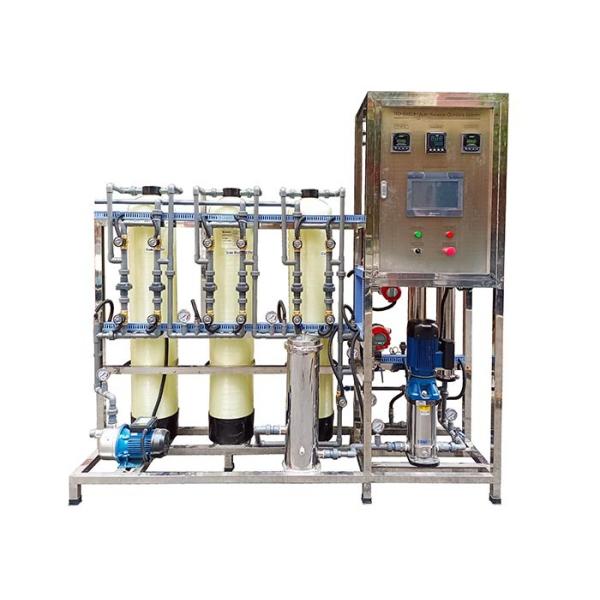

Fully Automatic Electric Control Valve Water Purifier Machine 500LPH RO System Water Treatment Equipment

Brand Name : Kaiyuan

Model Number : KYRO-500LPH

Certification : ISO9001, CE, SGS

Place of Origin : Guangzhou, China

MOQ : >= 1sets

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : >300sets/month

Delivery Time : 1-7working days(depand on raw materials stocking)

Packaging Details : export standard wooden case(plywood), no need to fumigate, suitable for shipping.

Production Capacity : 500LPH

Recovery Rate : 50% - 75%

Type : RO system water treatment equipment

Tank Material : FRP / Stainless Steel / Carbon Steel

Feature : Drinking Water

Pipe fitting : SUS304 / SUS316L / U-PVC

Operating temperature : 5℃ - 39℃

Pump : CNP/

Membrane : DOW / Vontron

Contact Now

Fully automatic electric control valve water purifier machine
500LPH RO system water treatment equipment
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 97%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.


RO Water Purifier Plant Details

KYRO-500LPH RO Water Purifier Plant

1. Capacity: 500L/H

2. Rated power: 2.5KW/H

3. RO System Rack Size: 2450*970*1970mm

4. Desalting rate:>=97%

5. Water recovery rate: 50-75%

6. TDS of raw water: ≤ 2000PPM

7. TDS of pure water: ≤ 60PPM

8. Voltage: 110V / 220V / 380V, 50Hz / 60Hz, single phase / 3phase


Process: Raw water pump ► Quartz sand filter ►Manganese sand filter► Activated carbon filter ► Security filter ► High-pressure pump ► RO system + water supply point

1. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
2. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
3. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
4. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month


RO Water Purifier Plant Details

Fully Automatic Electric Control Valve Water Purifier Machine 500LPH RO System Water Treatment Equipment
Fully Automatic Electric Control Valve Water Purifier Machine 500LPH RO System Water Treatment Equipment
Fully Automatic Electric Control Valve Water Purifier Machine 500LPH RO System Water Treatment Equipment

Guidelines for getting a proper quotation:

1.Tell us the raw water/source of water
Provide water analysis report if possible
2.Required production capacity( e.g.: 10000liters per hour…yeah?)
3.What's the pure water used for( direct drinking, domestic use or industrial use(pls describe^^) :)

Lets talked more details^^
